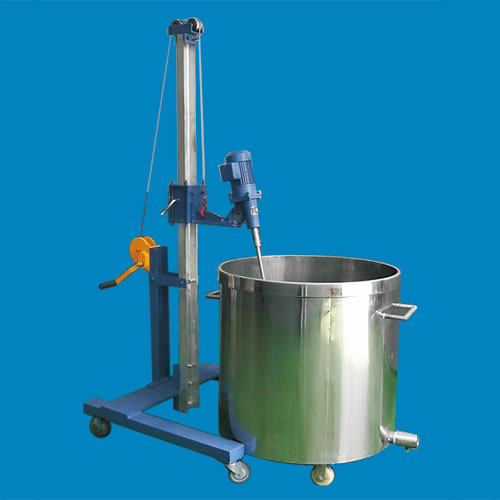

Dispersator

Dispersator

Description
The series high speed disperser can be equipped with a tooth shaped dispersion impeller for making high speed scattering and mixing. FL series dispersator also can employ with all kinds of mixing impellers for stirring at various occasions. This disperser machine is to mix, scatter and dissolve materials from low to medium viscosity. Owing to their optimum performance, high speed dispersers are widely used for the chemical, coating, dye, pigment, ink and adhesive applications.

Features of FL Series Dispersator
1. There is tiny absorption and reservation of the air and optimal effects of stirring and homogenizing when this high speed disperser is stirring and dispersing the materials.
2. With medium and high speed, this disperser machine can scatter and dissolve materials to smaller particle rapidly and efficiently.
3. This high speed disperser possesses good features of stable and reliable performance, wide capacity range, low noise and strong shear force.

Wuxi Top Mixer Equipment Co., Ltd. is a professional high speed disperser manufacturer and dispersator supplier in China. With multiple experts, we are a national hi-tech enterprise specializing in the design, manufacture and research and development of disperser machine and transmission for stirring pot. Our products mainly include mixing impeller, mixers, dispersator, portable mixer, magnetic agitator, belt drive stirrer, scattering agitator and mixing stands. If you need high speed disperser machine, please contact us.

Main Technical Standards of Dispersator

Type Parameter Model FG200 Model FG250 Model FG350
FL2.2 FL4 FL5.5/FL7.5 FL11 FL22
Main engine power(KW) 2.2 4 5.5/7.5 9/11 18.5/22
Scattered shaft speed (r/min) Electromagnetic speed 0-1250 0-1250 0-1250 0-1250 0-1250
Scattered shaft speed (r/min) Frequency conversion 0-1450 0-1450 0-1450 0-1450 0-1450
Scattered wheel diameter (mm) φ180-200 φ200 φ250 φ250 φ300-350
Up and down itinerary(mm) 600 800 900 900 1200
Pump power (KW) 0.55 0.55 0.75 0.75 1.1
Jar capacity(L) 100 200 300-500 500-800 1000-1500
Weight(kg) 500 500 600 800 1500
Configuration A (mm) 1400 1700 1820 1820 2400
B (mm) 940 1500 1800 1800 2200
C (mm) 350 600 700 700 1100
Wide W (mm) 500 580 900 900 1200
